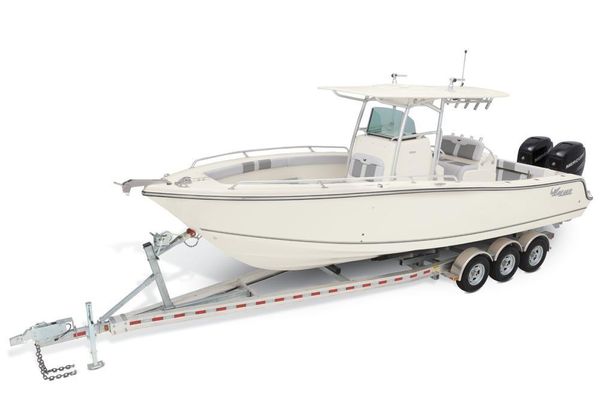

Mako 284 CC - main image

2019 Mako 284 CC

Year 2019
Length 28'4 ft

The MAKO® 284 CC is a perfect predator, whether you're hunting marlin in the Gulf Stream or mahi in the kelp paddies. Powered by up to 700 horses and with a 228-gal. fuel capacity, it's got the range and speed to get you out farther and keep you out longer.

The 284 CC is well-equipped to fish, with aft in-deck port and starboard 290-qt. fishboxes, and outrigger-ready fiberglass hardtop and a full-featured baitstation. And the quality of construction (100% composite) is unparalleled—the hull and deck are chemically bonded and mechanically fastened every 6" with stainless steel fasteners. The 1-piece, molded, gelcoated stringer grid reinforces the hull for a lifetime of fine performance. And it's backed by MAKO Assurance 5+Life—the best factory warranty in the business.

Specifications

Year Built 2019
Category Power
Length Overall 28'4 ft
Beam 9'10 ft
Max Draft 1'9 ft
Number of Passengers 13
Construction Fiberglass
Deadrise Angle 21 °
Engines 2
Fuel Tanks 1
Fuel Tank Cap. 228 gal
Dry Weight 7,270 lb

Engine 1 Specifications

Type: Outboard

Engine 2 Specifications

Type: Outboard
Additional Specs
  • Length:28' 4"
  • Beam: 9' 10"
  • Bottom width: 7' 9"
  • Max. recommended HP: 700 HP
  • Fuel capacity: 228 gal.
  • Max. person capacity: 13 persons
  • Max. person weight: 5490 lbs.
  • Max. person, motor & gear weight: 5791 lbs.
  • Interior depth: 33"
  • Transom height at center line: 30"
  • Deadrise: 21 degrees
  • Draft: 21"
  • Dry weight: 7270 lbs.
  • Average hull weight: 6000 lbs.
  • Average package weight: 9800 lbs.
  • Package height w/T-top or hardtop: 12' 4"
  • Storage length: 37' 10"
Standard Features

Certification & Safety

  • Backed by the MAKO® Assurance 5+Life—the best factory warranty in the business
  • NMMA® certified
  • Factory leak tested for hull, plumbing & fitting integrity
  • Stainless steel hardware & fasteners for corrosion resistance
  • CorrosionX stainless spray treatment included
  • Horn

Console

  • Custom anodized aluminum tilt steering wheel w/knob
  • Dual-cylinder hydraulic steering
  • Binnacle-mounted motor control
  • Mercury® SmartCraft® digital gauges
  • Trim tab switches w/position indicator lights & auto retract
  • Powdercoated aluminum battery switch panel w/labels, main power shutoff, emergency parallel switch, removable knobs & voltage sensing relays (VSR)
  • Switch panel w/manual reset circuit breakers & illuminated switches
  • Recessed switch panel w/circuit breakers & motor ignition switches
  • Easy access to helm electronics, instruments & switches
  • Oversized forward-console seat w/storage compartment & 2 drink holders
  • Integrated full-width fiberglass footrest w/non-skid surface
  • Tempered safety glass windscreen w/aluminum frame
  • Easy-access battery storage
  • Marine-grade tinned wiring w/submersible connectors
  • Extra-large electronics mounting surface
  • 2 console drink holders
  • 12V DC outlet

Leaning Post

  • Fiberglass leaning post
  • Backrest
  • Helm seat w/flip-up cushion
  • Storage below
  • Bait prep station w/freshwater sink, removable cutting board, 50-gal. (189.27 L) aerated anti-slosh baitwell & tackle storage

T-Top or Hardtop

  • Outrigger-ready fiberglass hardtop w/5 rod holders, electronics box & 3 spreader lights (1 fore, 2 aft)
  • .25" (.64 cm) in-deck aluminum backing-plate reinforcement for hardtop frame
  • .25" (.64 cm) aluminum backing-plate reinforcement for hardtop

Head

  • Gelcoat-finished surface, sink, wiring access hatches, battery switch panel, battery access & 6' (1.8 m) head room
  • Sink w/faucet & on-demand freshwater
  • Portlight in head door

Interior

  • Anchor locker w/protective inner liner
  • Foredeck dodger mounting boss
  • Port & starboard forward seats w/99-qt (94 L) fishboxes w/gravity overboard drainage
  • 470-qt. (445 L) center bow in-deck storage compartment w/drain
  • Low profile brushed anodized aluminum bow rails
  • Self-bailing cockpit w/gutters, oversized drains & transom valves
  • 3 port & 3 starboard gunnel-mounted rod holders
  • Port & starboard under-gunnel rod racks for 6 rods up to 7' (2.1 m) long
  • Port & starboard tilt-out storage bins
  • Freshwater shower w/pull-out spray head
  • 290-qt. (274 L) insulated port & starboard aft in-deck fishboxes w/Gulper macerator & overboard discharge
  • Molded non-skid surfaces throughout
  • Bilge access hatch
  • Walk-thru transom w/latching door
  • Port & starboard molded-in swim platforms
  • Port & starboard aft coaming bolsters
  • Stainless steel cleats w/access via hawse pipes
  • 2 bow drink holders

Performance

  • Legendary dry-riding MAKO® hull
  • Aggressive deep V hull design
  • Performance lifting strakes
  • Recessed electric trim tabs
  • Factory-matched stainless steel propellers

Construction & Exterior

  • 100% composite construction
  • Coosa® Bluewater 100% composite transom core
  • Heavy-duty, fiberglass-encapsulated transom w/2" (5.08 cm) fiberglass-impregnated, high-density composite core
  • Hull/deck joint chemically sealed & bonded 360° & mechanically fastened every 6" (15.24 cm) w/316 stainless steel fasteners
  • 1-piece molded fiberglass stringer grid w/integrated transom knee supports & gelcoat finish
  • Closed-cell foam-injected stringer grid for USCG-approved flotation
  • Premium marine-grade stainless steel hardware
  • Heavy-duty rub rail w/stainless steel insert
  • Closed-molded hatch covers w/finished undersides & integrated gaskets
  • Aluminum backing plates for cleats, chocks & hinges
  • Recessed, pull-out, telescoping boarding ladder
  • MAKO® Bone White gelcoat

Electrical, Mechanical & Plumbing Systems

  • Aluminum main fuel tank w/4 baffles
  • 2 automatic 2,000 GPH (7,570 LPH) bilge pumps
  • 1,600 GPH (6,057 LPH) & 1,100 GPH (4,164 LPH) baitwell pumps
  • Pressurized raw water washdown pump
  • High-speed raw water intake
  • Pressurized freshwater pump
  • 13-gal. (49 L) freshwater tank for sinks & shower
  • USCG-compliant navigation lights
  • 2 cockpit courtesy lights & 1 head light
  • 1 cranking battery per outboard
  • Marelon® corrosion-free seacocks on all below-water thru-hull fittings
  • Labeled, tinned-copper wiring for easy maintenance & protection in a marine environment
  • Pre-wired for optional stereo system & speakers
  • Pre-wired for optional anchor windlass

Optional Trailer

  • OPTIONAL aluminum triple-axle trailer available.
  • NMMA® certified.
  • DOT approved.
  • Triple-axle brakes.
  • 15" (38.1 cm) radial tires w/galvanized V5 wheels.
  • Oil bath hubs.
  • Torsion-axle suspension.
  • Heavy-duty winch w/nylon strap & safety strap.
  • Stainless steel hardware.
  • Galvanized steel components.
  • LED lighting.
  • LED marker lights.
  • PVC loading guides.
  • Galvanized fenders.
